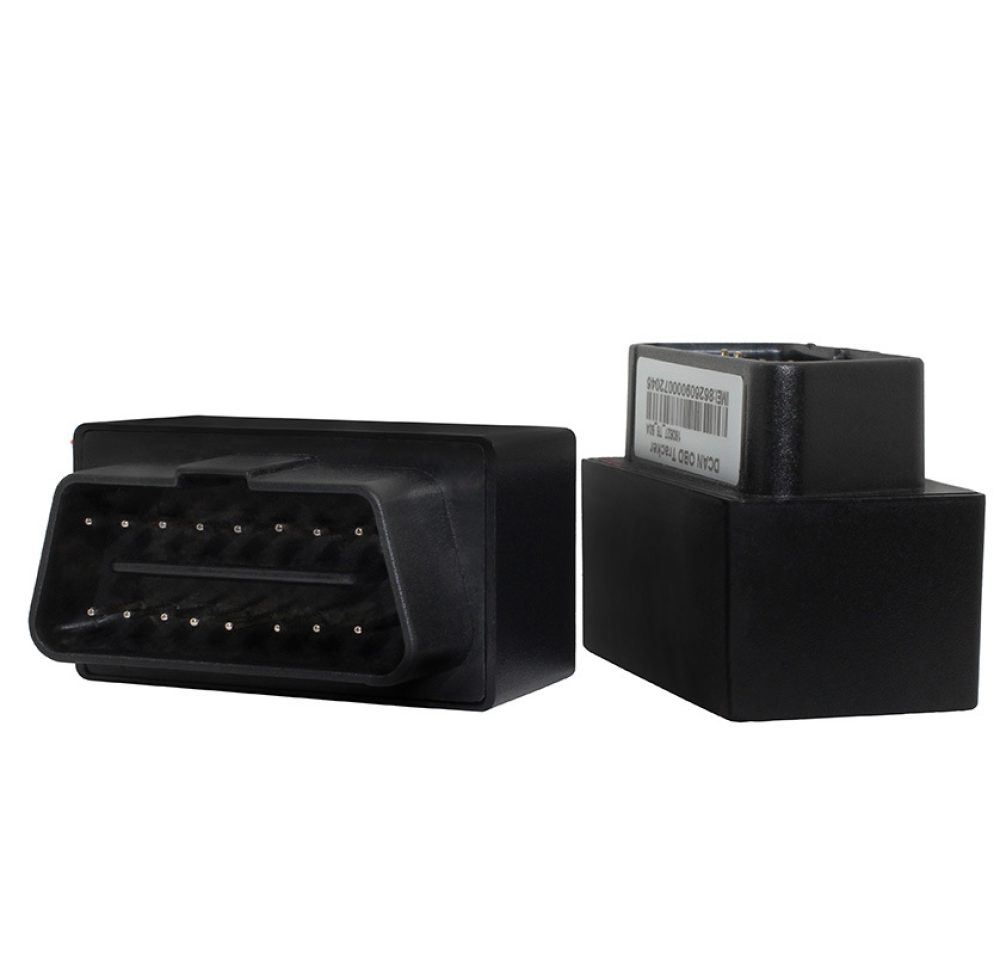

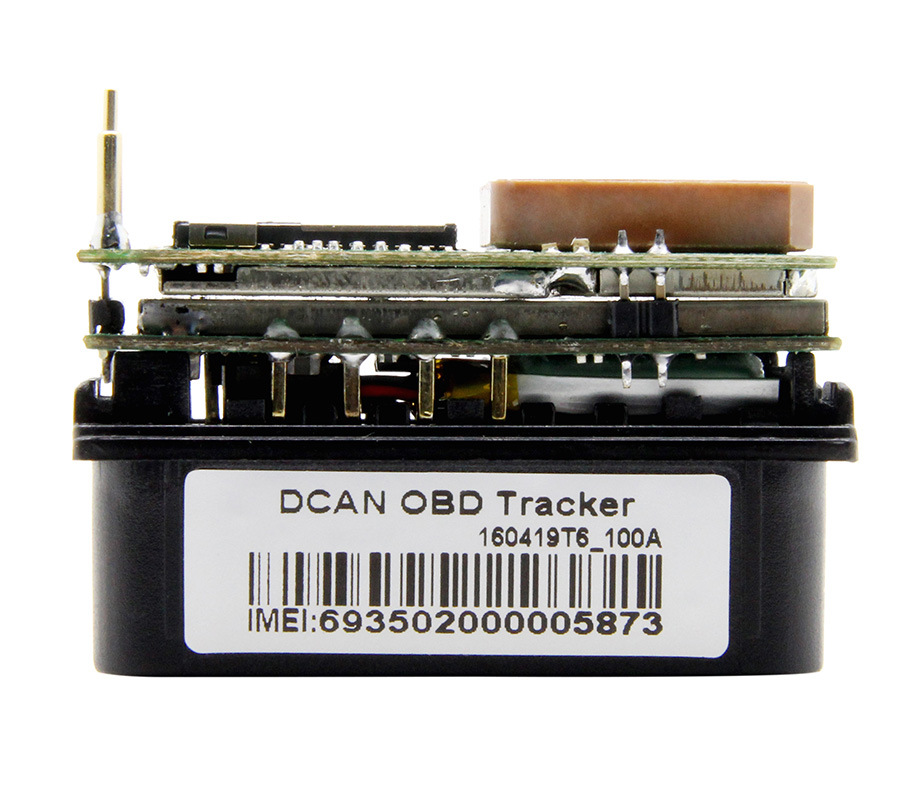

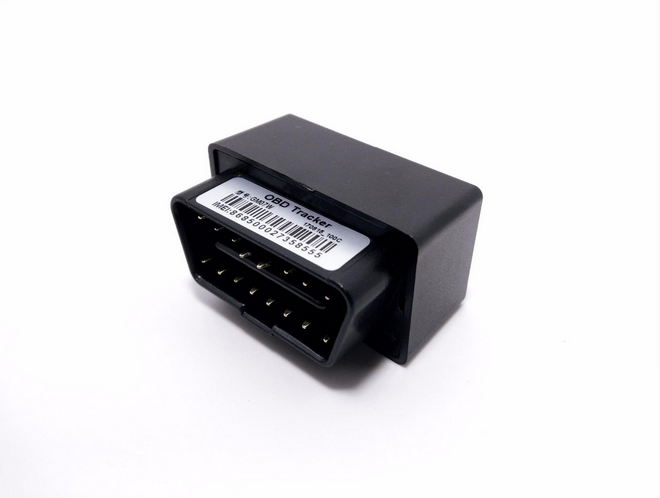

Mini OBD Real Time Vehicle Tracking Device is the easiest GPS tracking solution to deploy. Simply plug the unit into the car’s OBD port and you’re ready to track. The OBD port provides uninterrupted power to your tracking device so you’ll never have to worry about losing sight of your vehicle due to a dead battery.
Quad-band GSM/GPRS frequencies 850/900/1800/1900 MHz
Internal superior sensitivity U-blox 7 chipset
OBDII connectivity, easy to install
Internal 3-axis accelerometer for motion detection and driving behavior analysis
Build-in backup battery with long standby time
Internal GSM/GPS antenna
Wide operating voltage range 9V to 36V DC
Wide Input Voltage
With working voltage ranging from 9-36V could work both car and truck
Easy To Operate
Free installation no wiring harness simply plug into vehicle OBD port
Low Voltage Alarm
When the battery voltage drops below threshold an alert will sent to owner
Multi-Alarm
Shock alarm, move alarm, geofence alarm, over the speed Alarm, plug out alarm
| GSM Specifications | |
| Communication System: | GSM |
| GSM Frequency: | 850/900/1800/1900MHz |
| GPRS: | Class 12, TCP/IP |
| GPS Specifications | |
| GPS Chip: | Compatible with u-blox/BDS |
| Channel: | 66 |
| Location Accuracy: | <10meters |
| Tracking Sensitivity: | -163dBm |
| Acquisition Sensitivity: | -148dBm |
| GPS Location time: | Cold Start<29s(open sky)Hot Start<1s(open sky) |
| Product Specifications | |
| GSM/GPS antenna: | Built-in quad band GSM antenna, GPS ceramic antenna |
| LED Indicator： | One light indicate GSM/GPRS/GPS status |
| Work Voltage: | DC9-36V |
| Work Current: | ≤50mA |
| Standby Current: | ≤3.5mA |
| Operating Temperature: | -20℃ ~+70 ℃ |
| Built-in Battery: | 95mAh/3.7V Industrial grade lithium polymer battery |
| Device Dimension: | 25.1(W)*45.2(L)*32(H)mm |
| Device Weight: | 28g |
Portable Ultra Long Standby GPS Locator is extremely easy and flexible to be installed with a strong built-in magnetic. IP64 protection allows it to operate even in heavy humidity working environment. Device can work as long as 6 years standby (1 position per day) without charging.
Rechargeable Ultra-standby Asset GPS Car Tracking Locator is extremely easy and flexible to install using robust magnetic design. IP64 protection allows it to operate even in extreme working environment. With 6000mAH built-in battery could last 3 years standby (1 position per day), the device is suitable for asset tracking, vehicle tracking, cargo tracking, race motorcycle tracking, etc.
U9 Multi-functional 3G Vehicle GPS Tracking Device gets you a step ahead with 3G capabilities and better tracking, ideal for fleet tracking and management. Utilizing cutting-edge GPS technology, U9 features not only traditional tracking functions such as remote fuel power supply&Cut OFF, geo-fence, over speed alert but the optional Internal battery for wire-cut alarm, Hardware design with 1500W surge protection.
