Small asset GPS tracker with 3 years long battery life time

K09 is a Small asset GPS tracker with 3 years long battery life with more than 1200 days standby time designed for track goods, valuables, equipment, and other assets. It is completely portable and contains industrial magnets which makes it perfect for a flat metal surface.

  • GPS+AGPS+LBS Positioning
  • Real-time monitoring
  • Historical trajectory playback
  • Vibration alert, Geo-Fence alarm, drop off alarm
  • Built-in 5400mAh battery
  • Powerful magnet easy installation
  • Standby time more than 3 years


Small asset GPS tracker with 3 years long battery lifetime

 U-blox 7 High-Performance Chipset|Vehicleknight GPS Tracking System U-BLOX 7 High-Performance Chip                                      GPS+LBS+WIFI Positioning|Vehicleknight GPS Tracking SystemGPS+LBS Positioning

Adopted U-BLOX 7 high-performance chipset highly                              GPS mainly use for outdoor positioning, LBS for

raised the accuracy of positioning                                                                 indoor positioning

Ultra-Long Standby Time|Vehicleknight GPS Tracking System Ultra-long Standby Time                                                          Strong Magnetic MountingStrong Magnetic Mounting

Built-in 5400mAh lithium battery, one position per                                Strong magnet allowing  faster and more accessible

a day can last 3 years                                                                                        mounting on vehicles or assets

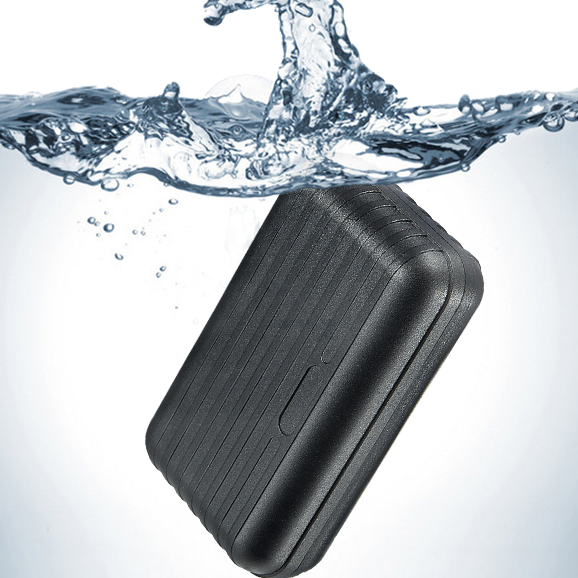

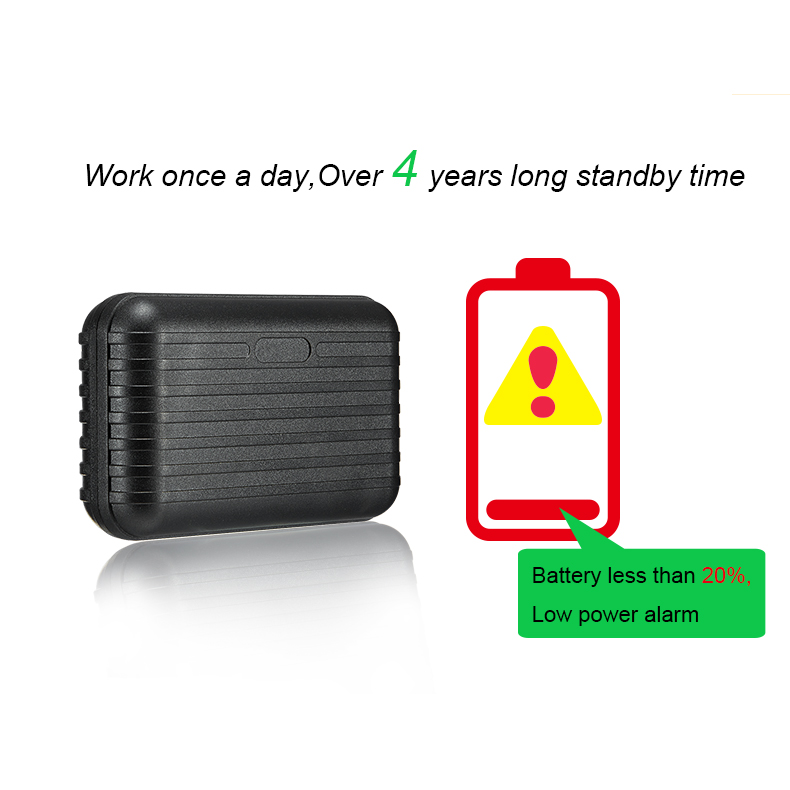

IP54 Dust and Waterproof Design|Vehicleknight GPS Tracking System IP64 Dust and Waterproof Design                                      Low Battery Alarm|Vehicleknight GPS Tracking SystemLow Battery Alarm

Not only effectively prevent dust from entering but also                       Low voltage alert will send to your mobile phone when the

prevent splashed water                                                                                 battery in the low condition

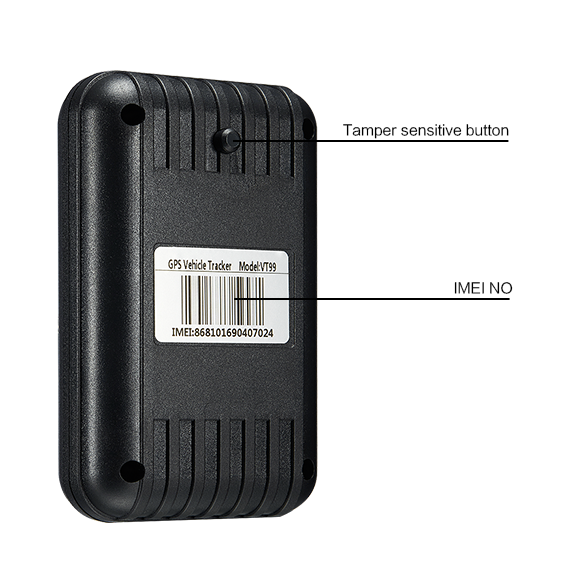

Cover Remove Alarm  Drop Trigger Alarm                                                                 Tracked by: SMS, APP, Web|Vehicleknight GPSTracked by SMS, APP, Web

Cover detection button pops out an alert will be sent                              Reports location in real time through different interfaces

when the device is dismantled

 Application Of Long Battery Life GPS Vehicle Tracker

ZT09 Portable Asset GPS Tracker|Vehicleknight GPS Tracking System


GSM Specificaion
Communication System: GSM
GSM Frequency: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
GPS Specificaion
GPS Chip: Compatible MT2503
Channel: 20
Location Accuracy: <10meters
Tracking Sensitivity: -163dBm
Acquisition Sensitivity: -148dBm
GPS Location time: Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specificaion
 GSM/GPS antenna:  Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator: GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:  DC9-80V
Work Current:  ≤55mA
Standby Current: ≤15μA
Operating Temperature: -20℃ ~+70 ℃
Built-in Battery: 5400mAh/3.7V  Industrial grade lithium polymer battery
Tracking Mode: >=3 Years(Mode 1—one positioning/day )

>=80 Hours    (Mode 2-real time positionging)

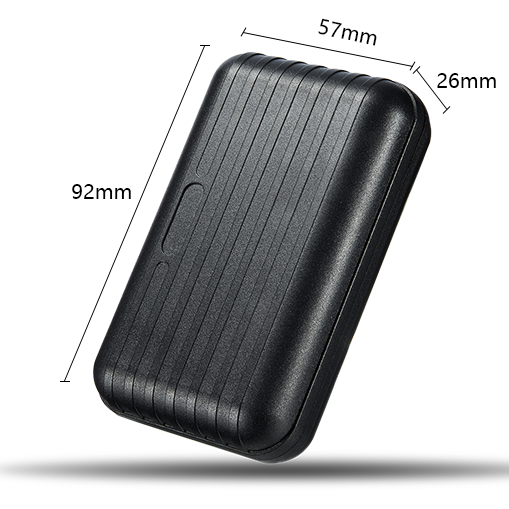

Device Dimension: 57(W)*92(L)*26(H)mm
Device Weight: 146g
