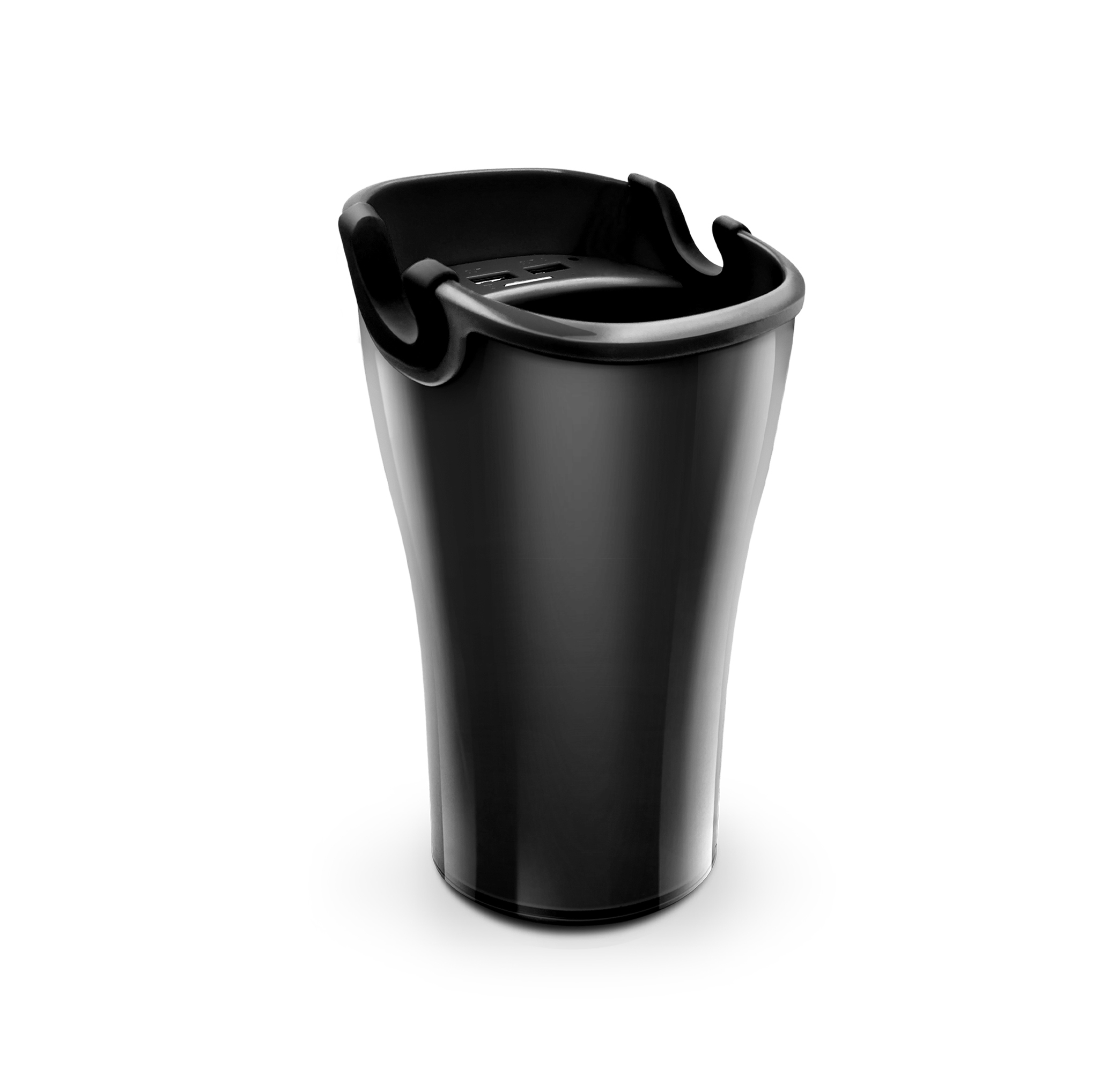

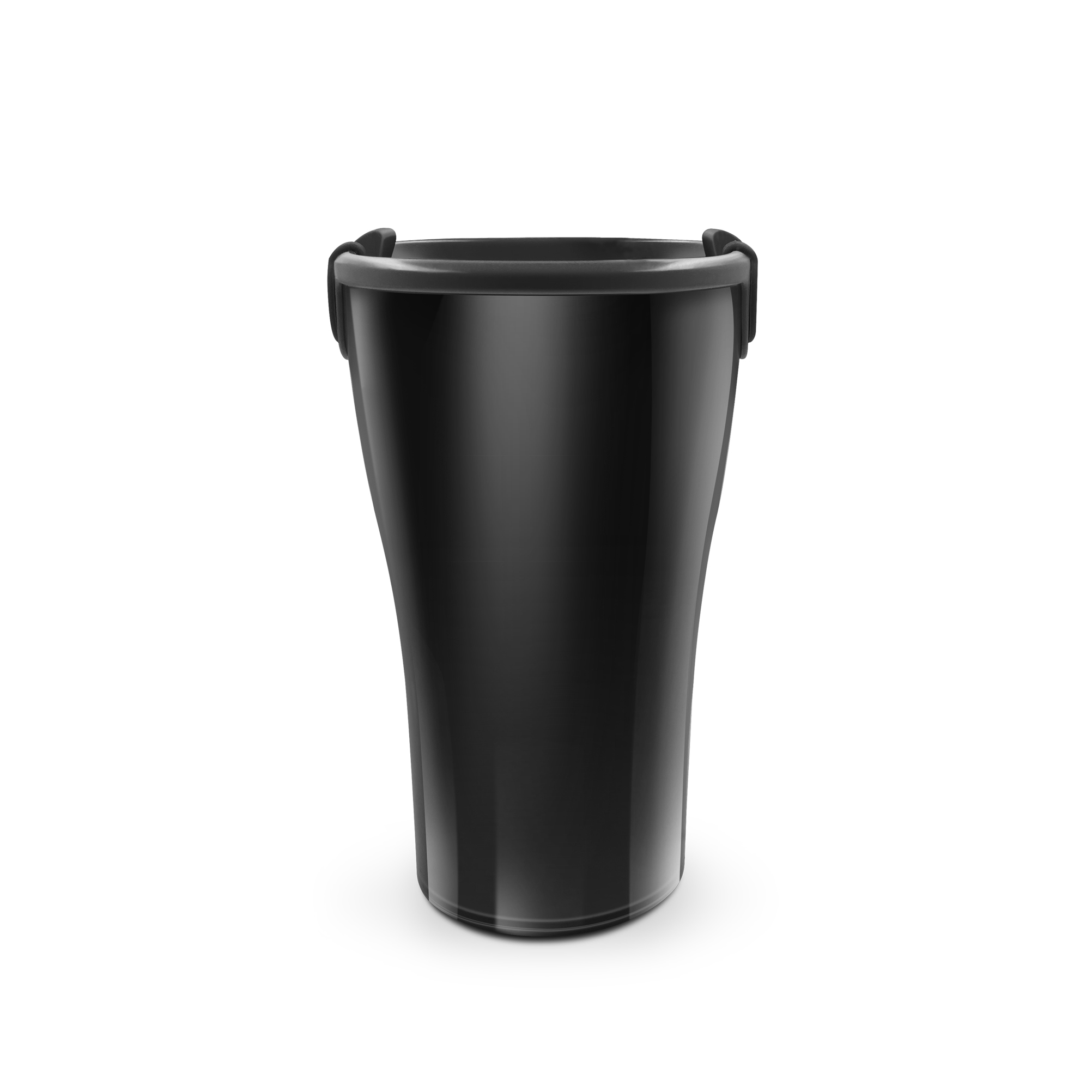

C-20 Covert Hidden GPS Vehicle Tracking Device

C-20 Covert Hidden GPS Vehicle Tracking Device Including GPS positioning, SOS Emergency help, Storage box, Mobile phone holder, Fast charger. Meet all your demands when you driving on the road.

Description

C-20 Covert Hidden GPS Vehicle Tracking Device

 U-blox 7 High-Performance Chipset|Vehicleknight GPS Tracking System U-BLOX 7 High-Performance Chip                                      GPS+LBS+WIFI Positioning|Vehicleknight GPS Tracking SystemGPS+LBS Positioning

Adopted U-BLOX 7 high-performance chipset highly                              GPS mainly use for outdoor positioning, LBS for

raised the accuracy of positioning                                                                 indoor positioning


Ultra-Long Standby Time|Vehicleknight GPS Tracking System Built-In Battery                                                                           Low Battery Alarm|Vehicleknight GPS Tracking SystemLow Voltage Alarm

Built-in 600mAh battery when car engine turned off                              When battery voltage lower 10.5V will send you alert

still could work                                                                                                  message


Easy to Operate|Vehicleknight GPS Tracking System Multi-Functions Fusion                                                            Remote Voice Monitoring |Vehicleknight GPS Tracking SystemRemote Voice Monitoring

Including GPS positioning, SOS Emergency help, Storage                     Use your phone to dial to the device then you can hear the

box, Mobile phone holder, Fast charger                                                      live voice inside your car


Cover Remove Alarm|Vehicleknight GPS Tracking System Covert Hidden Work                                                                  Multiple Alarms|Vehicleknight GPS Tracking SystemMultiple Alarms

Product appearance without any GPS identification no                          Shock alarm, move alarm, geofence alarm, over speed

sound no light very easier to hidden                                                            alarm, power off alarm


Application of GPS Vehicle Tracking Device

BD02 Anti Theft GPS Vehicle Car Tracker

Specifications

GSM Specificaion
Communication System: GSM
GSM Frequency: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
GPS Specificaion
GPS Chip: U-Blox 7 High Performance Chipset
Channel: 66
Location Accuracy: <10meters
Tracking Sensitivity: -163dBm
Acquisition Sensitivity: -148dBm
GPS Location time: Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specificaion
 GSM/GPS antenna:  Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator: GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:  DC9-36V
Work Current:  600mA
Standby Current: ≤3.5mA
Operating Temperature: -20℃ ~+70 ℃
Built-in Battery: 90mAh/3.6V Industrial grade lithium polymer battery
Device Dimension: 41.5(W)*43(L)*22(H)mm
Device Weight: 50g
