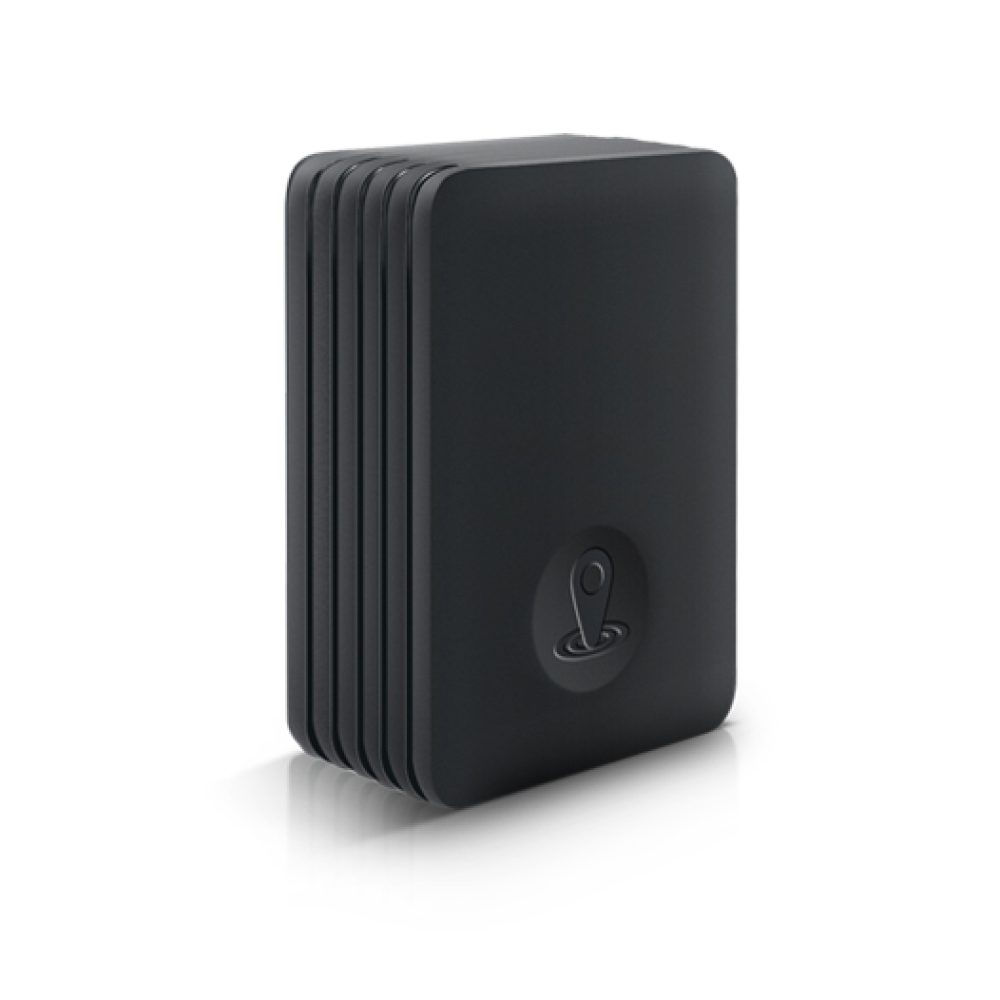

ZT09 Portable Asset GPS Tracker

ZT09 Portable Asset GPS Tracker, it can provide 3 years for users to a position per day, track, and other functions.ZT09 can be mounted on the objects with the super-cohesive magnetic built-in it. It is particularly suitable for monitoring the asset for many years, such as base station batteries, long-haul commercial vehicles, construction machinery, large equipment, and other high-value items.

  • Real-Time Positioning
  • Strong magnet and portable
  • Remote pick-up
  • Ultra-long standby
  • Deep sleep and power –saving
  • Automatic power On/OFF
  • Ultra-strong waterproofing
  • Anti-detection,Anti-shielding
  • Concealed work, Smart operation
  • Tamper alarm


ZT09 Portable Asset GPS Tracker

 U-blox 7 High-Performance Chipset|Vehicleknight GPS Tracking System U-BLOX 7 High-Performance Chip                                      GPS+LBS+WIFI Positioning|Vehicleknight GPS Tracking SystemGPS+LBS+WIFI Positioning

Adopted U-BLOX 7 high-performance chipset highly                              GPS mainly use for outdoor positioning, LBS/WIFI for

raised the accuracy of positioning                                                                 indoor positioning

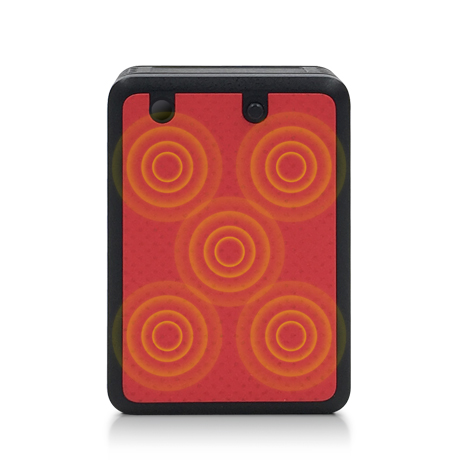

intelligent power management|Vehicleknight GPS Tracking System Intelligent power management                                             Strong Magnetic MountingStrong Magnetic Mounting

Reduce inefficient power consumption when the device                        Strong magnet allowing  faster and more accessible

keeps static                                                                                                        mounting on vehicles or assets

IP54 Dust and Waterproof Design|Vehicleknight GPS Tracking System IP54 Dust and Waterproof Design                                      Low Battery Alarm|Vehicleknight GPS Tracking SystemLow Battery Alarm

Not only effectively prevent dust from entering but also                       Low voltage alert will send to your mobile phone when the

prevent splashed water                                                                                 battery in the low condition

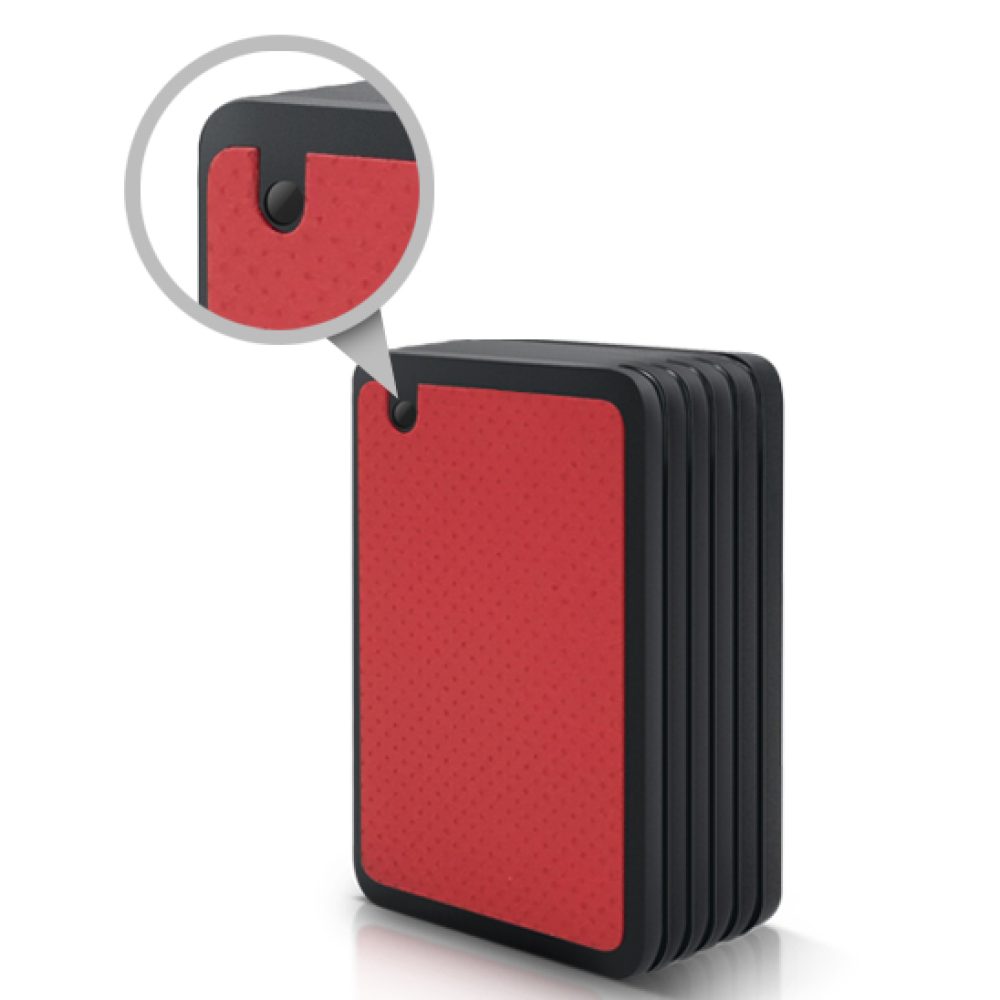

Cover Remove AlarmCover Remove Alarm                                                                 Light Perception Alarm|Vehicleknight GPS Tracking SystemLight Perception Alarm

Cover detection button pops out an alert will be sent                             The light sensor detects light changes the device will

when the device is dismantled                                                                      send out a light perception alarm

ZT09 Portable Asset GPS Tracker|Vehicleknight GPS Tracking System


GSM Specificaion
Communication System: GSM
GSM Frequency: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
GPS Specificaion
GPS Chip: Compatible with u-blox/BDS
Channel: 20
Location Accuracy: <10meters
Tracking Sensitivity: -163dBm
Acquisition Sensitivity: -148dBm
GPS Location time: Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specificaion
 GSM/GPS antenna:  Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator: GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:  DC9-80V
Work Current:  ≤55mA
Standby Current: ≤15μA
Operating Temperature: -20℃ ~+70 ℃
Built-in Battery: 5400mAh/3.7V  Industrial grade lithium polymer battery
Tracking Mode: >=3 Years(Mode 1—one positioning/day )

>=80 Hours    (Mode 2-real time positionging)

Device Dimension: 47.5(W)*69(L)*29.5(H)mm
Device Weight: 141g
