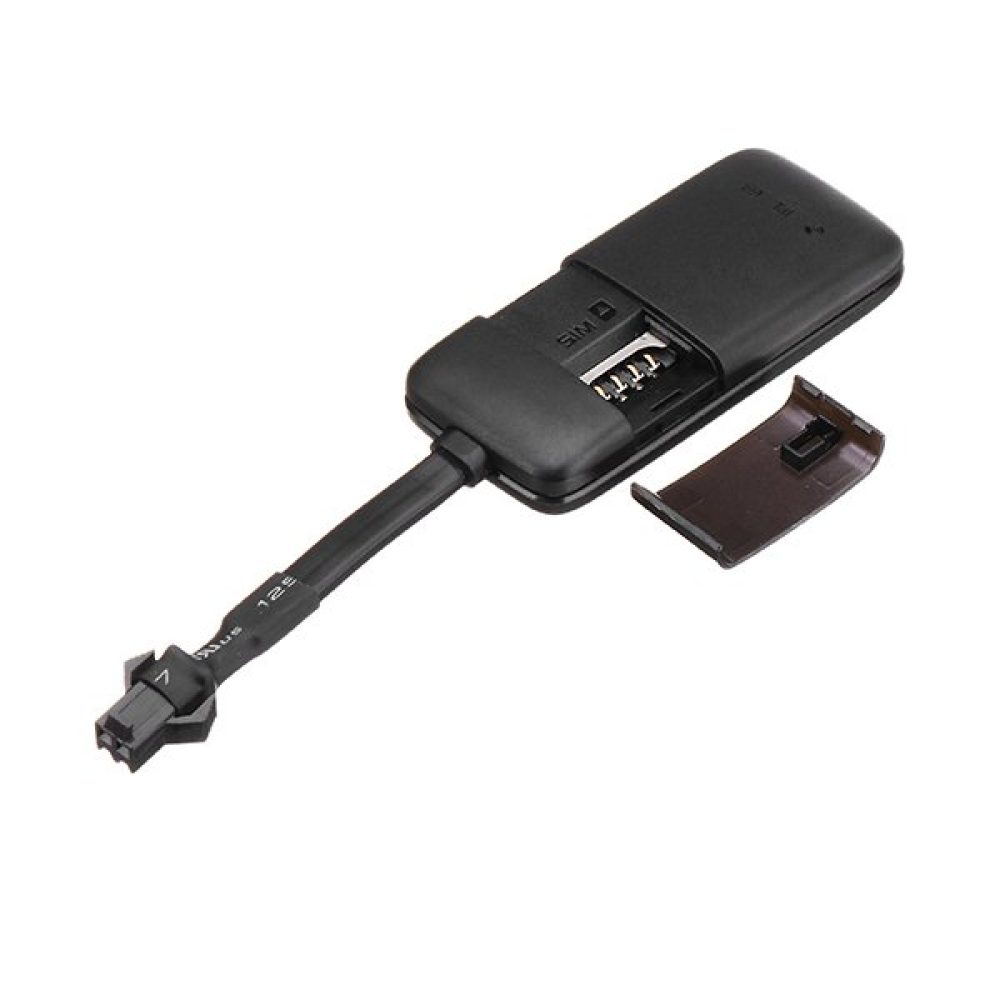

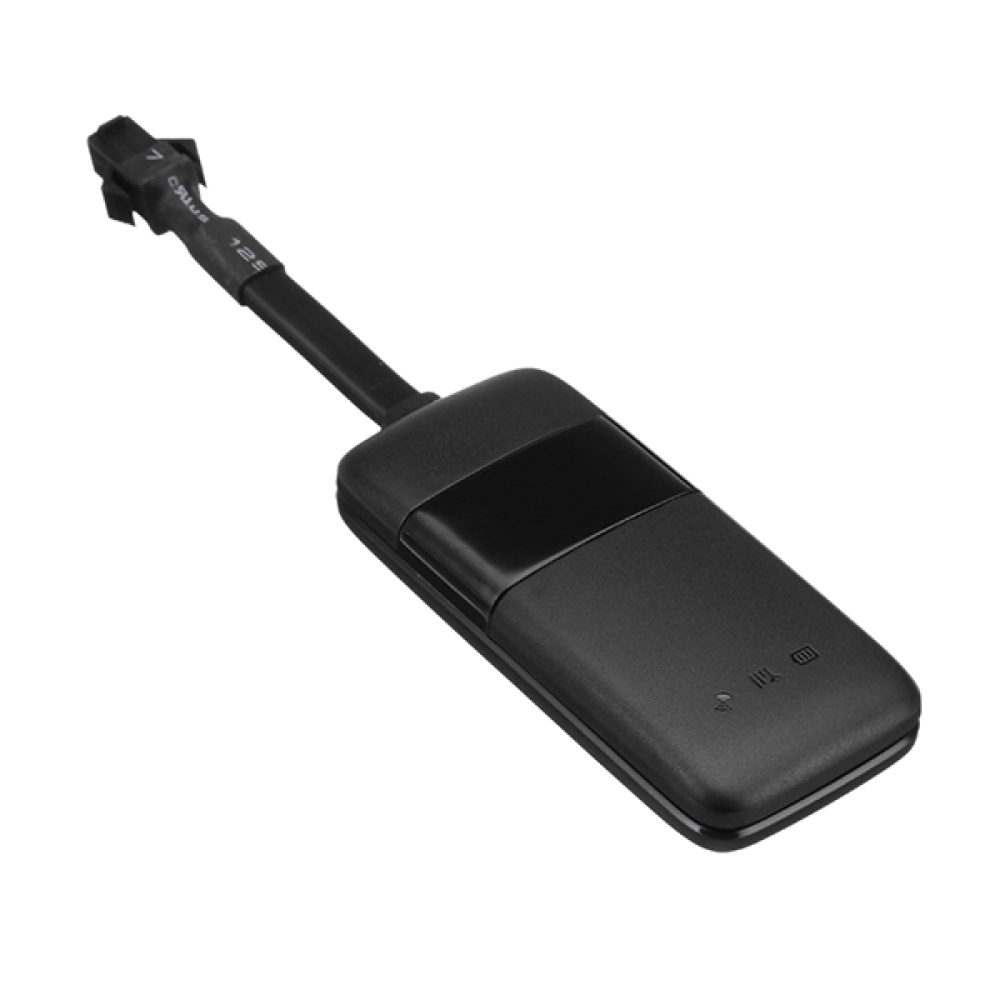

E02L Realtime Car Motorcycle Tracking Device Locator

The E02L is a real-time vehicle car, motorcycle GPS tracker, smallest on the market tracking device, can apply for a variety of vehicles.

  • GPS+LBS two Mode location
  • Real-time tracking and support 180 days history play-back
  • Precise mileage reports
  • Driving behavior analysis reports
  • Geo-fence features
  • Smart ACC detection
  • Device unplugged alert
  • Car crash accident alert
  • Wide range input from 5-30v DC

Description

Vehicleknight GPS TrackerU-BLOX 7 High-Performance Chip
 Adopted U-Blox 7 high-performance chipset highly raised the accuracy of positioning

Vehicleknight GPS TrackerGPS+LBS+WIFI Positioning
 GPS work as the main positioning, LBS/WIFI as a supplement when lack of GPS

Vehicleknight GPS TrackerWide Input Voltage
 Wide operating voltage range from 6-45V could meet all vehicles

Vehicleknight GPS TrackerMultiple Alarms
 Shock alarm, move alarm, geofence alarm, over speeding alarm, power off alarm

Vehicleknight GPS TrackerMini Size And Smooth Appearance
Easier to hide in different vehicles

Vehicleknight GPS TrackerACC detection for Ignition Status
Be aware of the ignition status whenever you need

BD02 Anti Theft GPS Vehicle Car Tracker

Specifications

GSM Specifications
Communication System: GSM
GSM Frequency: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
GPS Specifications
GPS Chip: U-Blox 7 High Performance Chipset
Channel: 66
Location Accuracy: <10meters
Tracking Sensitivity: -163dBm
Acquisition Sensitivity: -148dBm
GPS Location time: Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specifications
 GSM/GPS antenna:  Built-in quad-band GSM antenna, GPS ceramic antenna
LED Indicator: GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:  DC5-30V
Work Current:  ≤6mA
Standby Current: ≤3.5mA
Operating Temperature: -20℃ ~+70 ℃
Built-in Battery: 30mAh/3.7V  Industrial grade lithium polymer battery
Device Dimension: 35(L) x 70(W) x 13(H) mm
Device Weight: 20g
