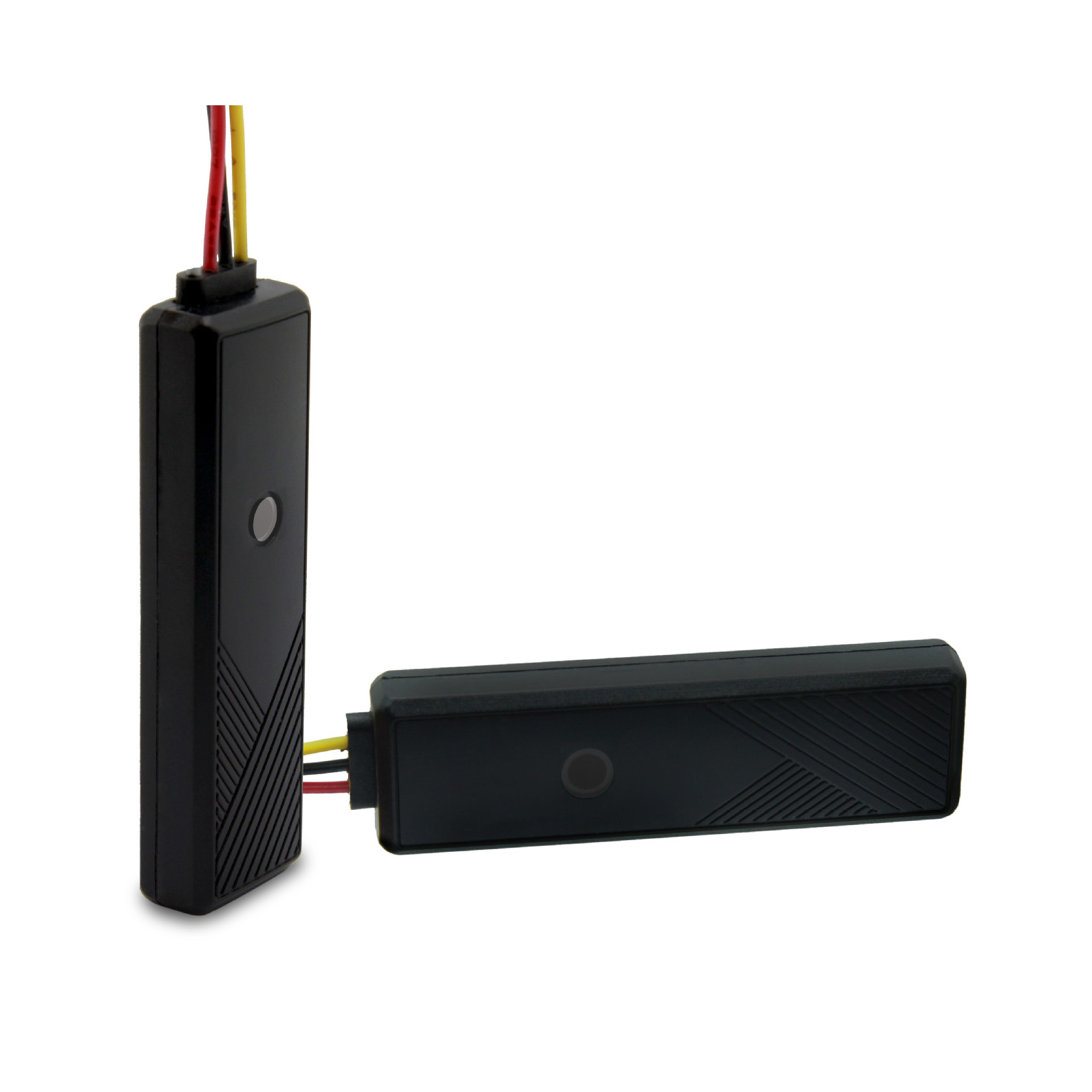

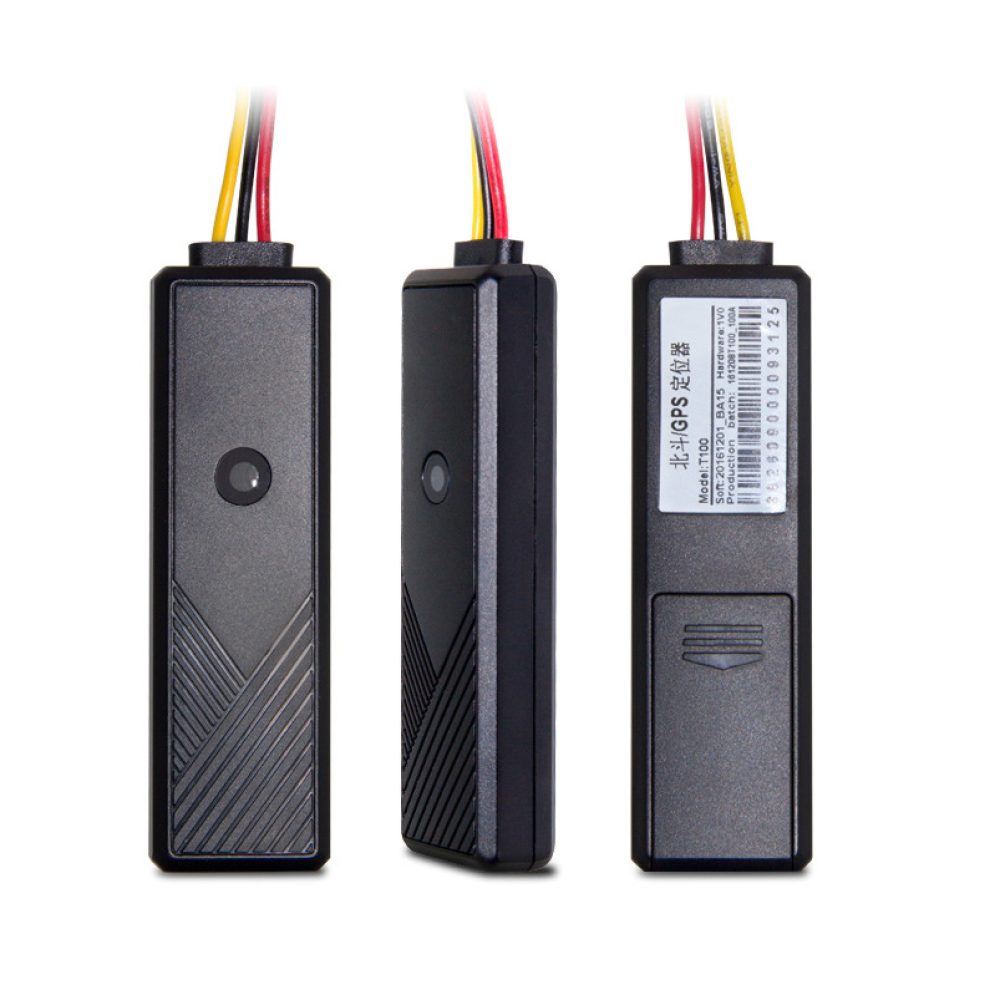

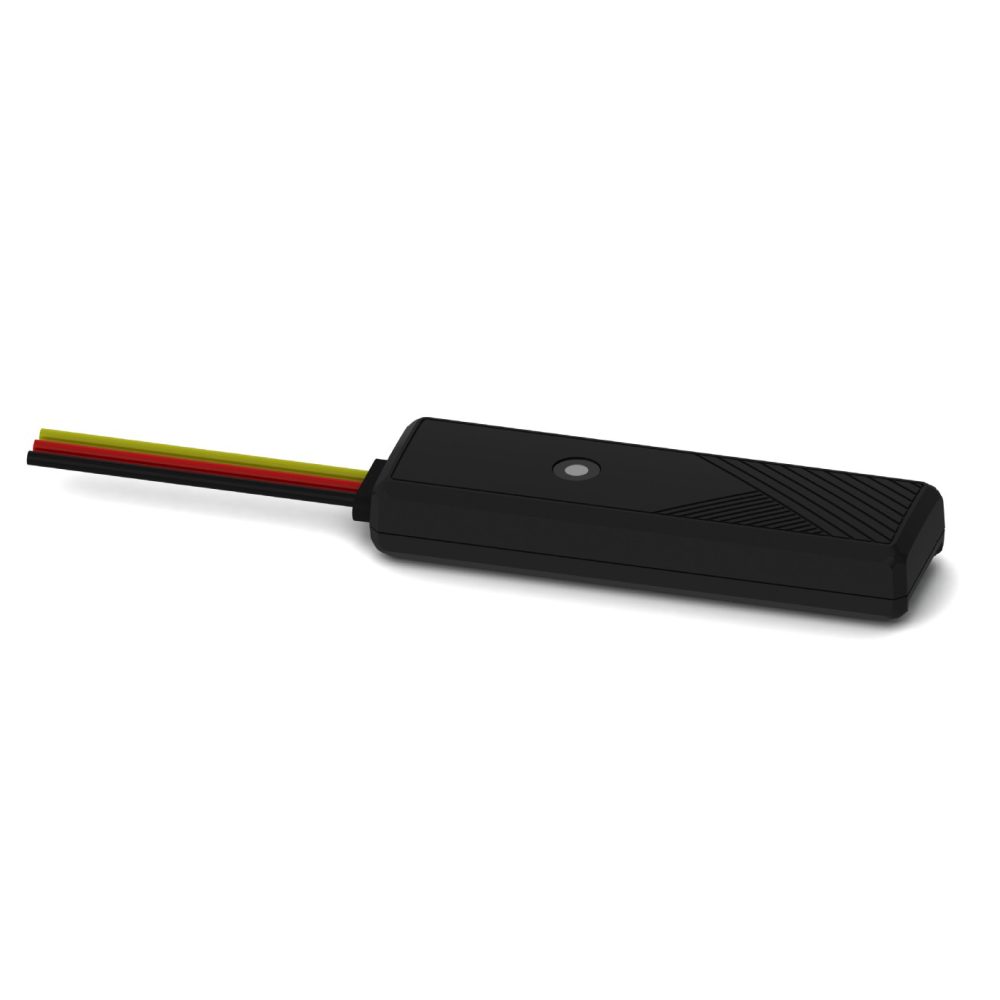

T100 Real-Time Motorcycle GPS Tracker

T100 Motorcycle GPS Tracker is small, lightweight, and is powered directly by your motorcycle. Just insert a SIM card (GSM frequency only) and you have peace of mind for the perfect price.

At Glance…

  • Real-time GPS tracking for motorcycle
  • Global coverage with quad-band GSM frequency
  • Vibration, geo-fence, power cut-off alarms
  • Weatherproof

Manufacturers Specification

  • Primary Function: Quadband GSM Motorcycle GPS Tracker
  • Construction: Weatherproof Hard molded ABS plastic
  • Power Source: Motorcycle directly or via built-in battery
  • Internal Battery: Built-in Rechargeable 80mAh Battery
  • Battery Working Time: 3 hours

Description

T100 Real-Time Motorcycle GPS Tracker

 U-blox 7 High-Performance Chipset|Vehicleknight GPS Tracking System U-BLOX 7 High-Performance Chip                                      GPS+LBS+WIFI Positioning|Vehicleknight GPS Tracking SystemGPS+LBS+WIFI Positioning

Adopted U-BLOX 7 high-performance chipset highly                              GPS mainly use for outdoor positioning, LBS/WIFI for

raised the accuracy of positioning                                                                 indoor positioning


Wide Input Voltage|Vehicleknight GPS Tracking System Wide Input Voltage                                                                      Multiple Alarms|Vehicleknight GPS Tracking SystemMultiple Alarms

With working voltage ranging from 6-45V could work                            Shock alarm, move alarm, geofence alarm, over speed

both car and truck                                                                                            alarm, power off alarm


Mini Size and Smooth Appearance|Vehicleknight GPS Tracking System Mini Size And Smooth Appearance                                        ACC detection for Ignition Status|Vehicleknight GPS Tracking SystemACC detection for Ignition Status

Very light and small you could easier hide  at your                                    Be aware of the ignition status whenever you need

Vehicles


Application

BD02 Anti Theft GPS Vehicle Car Tracker

Specifications

GSM Specificaion
Communication System: GSM
GSM Frequency: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
GPS Specificaion
GPS Chip: U-Blox 7 High Performance Chipset
Channel: 66
Location Accuracy: <10meters
Tracking Sensitivity: -163dBm
Acquisition Sensitivity: -148dBm
GPS Location time: Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specificaion
 GSM/GPS antenna:  Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator: GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:  DC9-36V
Work Current:  ≤50mA
Standby Current: ≤3.5mA
Operating Temperature: -20℃ ~+70 ℃
Built-in Battery: 80mAh/3.7V  Industrial grade lithium polymer battery
Device Dimension:  35(L) x 70(W) x 13(H) mm
Device Weight: 29g
